1” Retractable Ratchet Strap: Designed for Modular Mounting and Professional Applications

Product Overview

Our 1-inch retractable ratchet strap is engineered to support modular installation, fast operation, and reliable load control. Featuring a one-touch auto-retract mechanism (utility patent pending), this product is designed for OEM programs and professional cargo control applications.
With a 10 ft webbing length and 1,760 lbs break strength, the strap combines compact design with dependable performance across multiple use cases.

One-Touch Retractable Mechanism (Utility Patent Pending)

Easy Pull-Out, One-Button Retraction

The webbing can be pulled out freely to the required length, and with a single press of the release button, the strap retracts smoothly back into the housing.
This one-touch retract system (utility patent pending) improves efficiency, reduces setup time, and minimizes loose webbing during storage and transport.

Functional Advantages

• Smooth and controlled retraction
• Reduced webbing tangles
• Cleaner and safer working environment
• Improved user experience compared to traditional ratchet straps

Load Capacity & Tensile Test Report

Rated Strength Performance

This retractable ratchet strap is designed with a rated break strength of 1,760 lbs, suitable for light to mid-duty cargo securing applications.
Tensile Testing Results

Test Conditions

• Webbing width: 1 inch
• Test method: Straight pull tensile test
• Environment: Room temperature
• Test equipment: Calibrated tensile testing machine


Test Summary

Average break force: ≥ 1,760 lbs (800kg)
Failure mode: Webbing rupture or hardware deformation
Retraction mechanism: Remained intact prior to webbing failure
The test results confirm that the product meets the intended strength requirements for its design class and application range.

Mounting Design for Custom Applications

Dual M8 Mounting Holes

The bottom of the retractable housing is designed with two M8 mounting holes, allowing the unit to be securely fixed using standard bolts.
This design enables stable installation while maintaining easy access to the retract function.

Compatible with Custom Base Plates

Thanks to the dual M8 mounting layout, the ratchet can be:

• Mounted directly onto flat surfaces
• Integrated into custom metal or aluminum base plates
• Adapted for vehicle beds, trailers, racks, and tool systems


This modular structure supports a wide range of custom OEM installation scenarios.

Material Options & Configuration

Standard and Stainless Steel Versions

To meet different environmental requirements, we offer:
Standard steel construction for general applications
Stainless steel version for marine or corrosion-sensitive environments

Color-Coded Design

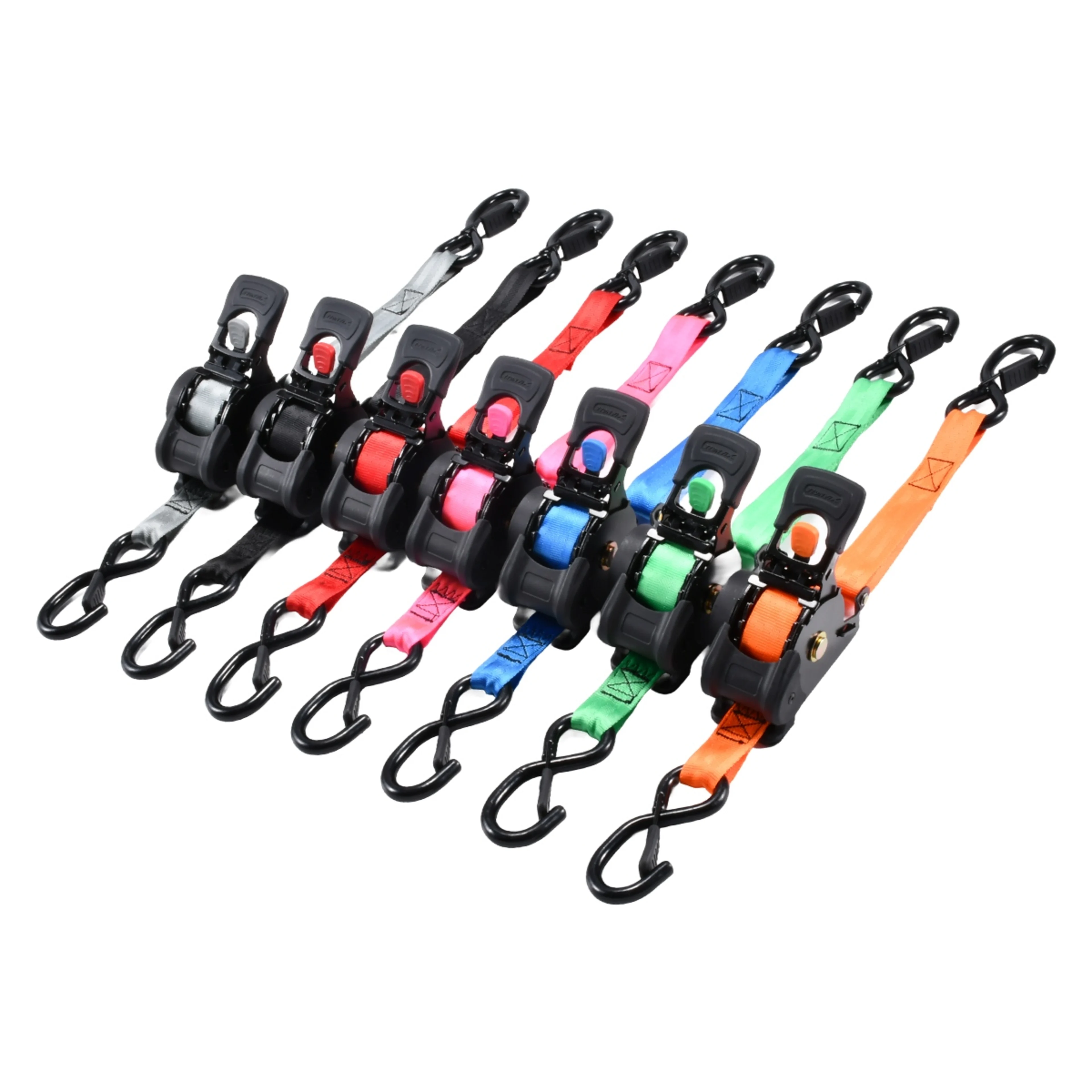

7 webbing color options
Matching color release buttons for quick identification

OEM & Private Label Support

Branding and Packaging

We support OEM and private label programs including:

Custom logo branding

Private-label packaging

Configuration matching for different markets

Application Markets

This product is suitable for:

• Pickup trucks
• Off-road
• Trailers
• Marine cargo securing systems


Conclusion

With its one-touch retract system (utility patent pending), verified tensile performance, and dual M8 mounting design, this 1-inch retractable ratchet strap is built for modular installation and professional product development.
Samples are available for evaluation.
Contact us to discuss OEM integration, custom mounting solutions, and testing documentation.
